You are here: home - Accesories - ORVALDI MBS 3/3 2U

series: Accesories

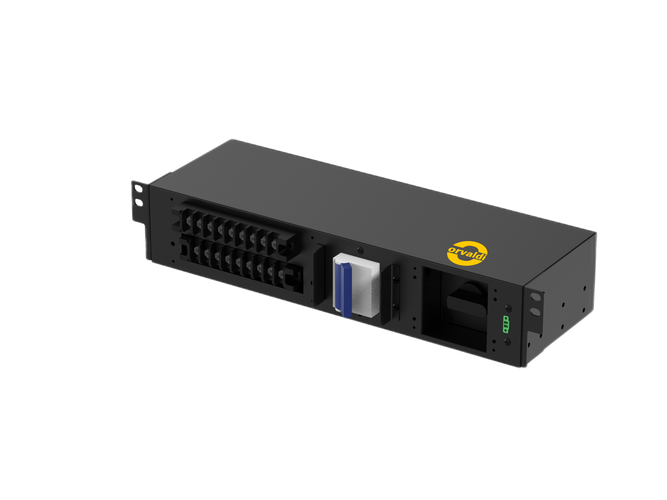

ORVALDI MBS 3/3 2U

Optimize your power management system with the ORVALDI MBS 3/3 2U. This external bypass in RACK version is designed to facilitate the seamless operation of your UPS during maintenance or repair, ensuring that your power supply remains continuous and reliable.

Product Features

  • UPS input breaker
  • Maintenance bypass switch
  • Control output signal slot
  • Output terminal
  • UPS output terminal
  • UPS input terminal
  • Utility input terminal
  • Grounding terminal

Application:

It’s perfect to use in conjunction with 3/3 10K/15K/20K VA UPS.

"HIGH QUALITY" OPTION:

ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).

ORVALDI MBS 3/3 2U

The module is used as an external maintenance bypass switch to provide continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. It’s perfect to use in conjunction with 3/3 10K/15K/20K VA UPS.

Rack Mount the Unit: The module can be mounted to a 19” enclosure. Please follow the chart below for rack mount installation.

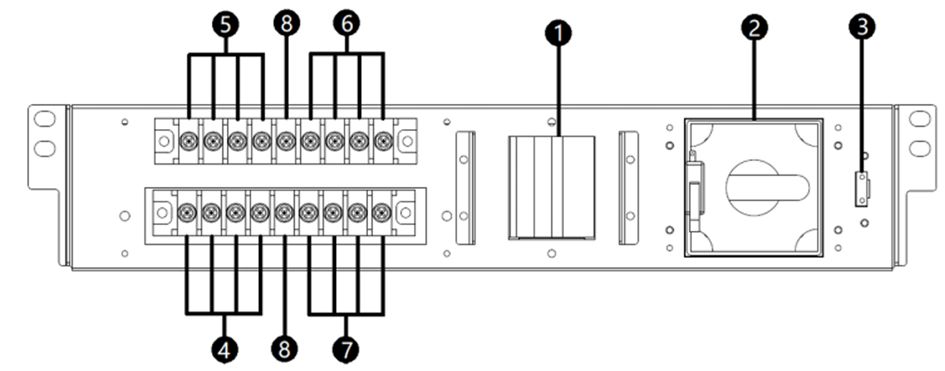

Product Features

  1. UPS input breaker
  2. Maintenance bypass switch
  3. Control output signal slot
  4. Output terminal
  5. UPS output terminal
  6. UPS input terminal
  7. Utility input terminal
  8. Grounding terminal
Specification
Specification of Critical Components 10K 15K 20K
Input breaker Current 32A 63A 63A
Voltage 400V 400V 400V
Bypass switch Current 25A 32A 32A
Voltage 440V 440V 440V
Input/Output terminal Current 50A 50A 50A
Voltage 600V 600V 600V
